Scanners - Replace Battery in LI-4278 and LS-4278 Scanners

Scanners - Replace Battery in LI-4278 and LS-4278 Scanners

Replacing the Scanner Battery

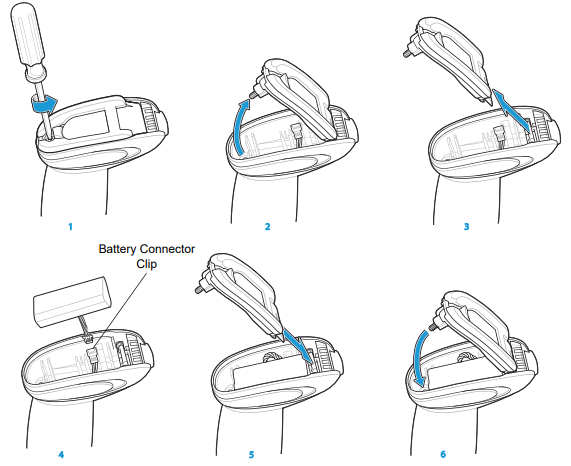

The battery is installed in the cordless scanner in a chamber in the scanner handle. To replace the battery:

1. Insert a Phillips screwdriver in the screw at the base of the scanner, then turn the screw counterclockwise to release the latch.
2. Remove the latch.
3. If a battery is already installed, turn the scanner upright to slide the battery out. Disconnect the battery connector clip.
4. With the contacts on the connector clips facing in the same direction, attach the new battery’s connector clip to the connector clip in the base of the scanner.
5. Slide the new battery into the battery well and ensure the battery leads are visible. The battery should sit securely in the well.
6. Attach and close the latch
7. Insert a Phillips screwdriver in the screw at the base of the scanner, press down gently, and turn the screw clockwise to lock the latch in place.
